KRENG 03 | Lumberg
PCB terminal, 3 pole, pitch 10 mm, AWG 22-14, 15 A, screw connection, light gray, KRENG 03
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.1424 € *
Standard delivery time from the manufacturer is: On Request

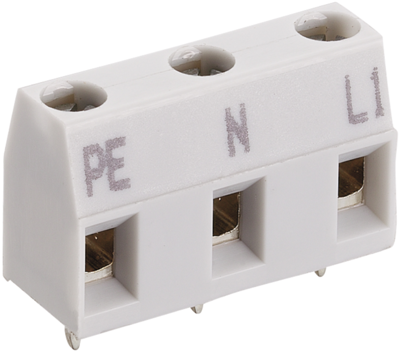

Screw terminal block for main supply, type Lumberg KRENG 03
Screw terminal block for mains supply, with lift clamp with protection against misplacing, upright, consecutive placement without loss of pitch.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Grid | 10 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| AWG cross-section | AWG 22-14 | |
| Rated current | 15 A | |
| Rated voltage | 500 V | |
| Width | 10 mm | |
| Height | 15.5 mm | |
| Connection | screw connection | |
| Assembly | THT | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
