KREG 07 | Lumberg
PCB terminal, 7 pole, pitch 5 mm, AWG 22-14, 15 A, screw connection, light gray, KREG 07
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: 9 Weeks

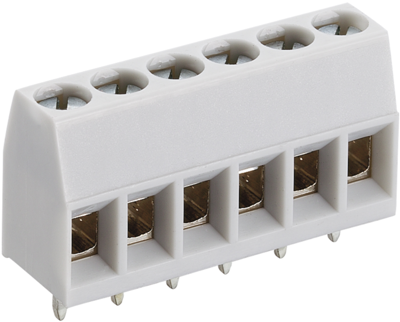

PCB terminal, KREG 07, LUMBERG
Screw terminal block, with lift clamp with protection against misplacing, with stronger screw, upright version, consecutive placement without loss of pitch, contact pitch 5.0 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Width | 10 mm | |
| Colour | light gray | |
| Pin number | 7 pole | |
| AWG cross-section | AWG 22-14 | |
| Contact distance | RM 5 | |
| Rated voltage | 250 V | |
| Assembly | THT | |
| Height | 15.5 mm | |
| Rated current | 15 A | |
| Cable cross-section | 0.2-4.0 mm² | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
