KREG 06 | Lumberg
PCB terminal, 6 pole, pitch 5 mm, AWG 22-14, 15 A, screw connection, light gray, KREG 06
Unit Price (€ / pc.)
1.6184 € *
Standard delivery time from the manufacturer is: 9 Weeks

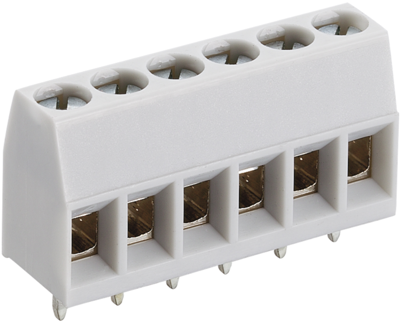

PCB terminal, KREG 06, LUMBERG
Screw terminal block, with lift clamp with protection against misplacing, with stronger screw, upright version, consecutive placement without loss of pitch, contact pitch 5.0 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22-14 | |
| Colour | light gray | |
| Contact distance | RM 5 | |
| Connection | screw connection | |
| Rated voltage | 250 V | |
| Cable cross-section | 0.2-4.0 mm² | |
| Width | 10 mm | |
| Height | 15.5 mm | |
| Assembly | THT | |
| Pin number | 6 pole | |
| Grid | 5 mm | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
