MICSW 14 | Lumberg

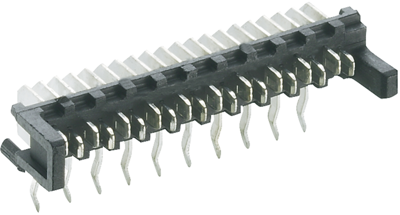

Pin header, 14 pole, pitch 1.27 mm, angled, black, MICSW 14
Unit Price (€ / pc.)
1.5946 € *
Standard delivery time from the manufacturer is: 9 Weeks
Pluggable screw terminal block, ME 020-50803, Lumberg
Pin header, without sidewalls, upright version, consecutive placement without loss of pitch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Pin number | 14 pole | |
| Colour | black | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 1.2 A | |
| Version | pin header | |
| Connection | solder pin | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 160 V | |
| contact surface | tin-plated | |
| Orientation | angled | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
| Original Packaging | Carton with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
