MICS/SMD 26 | Lumberg

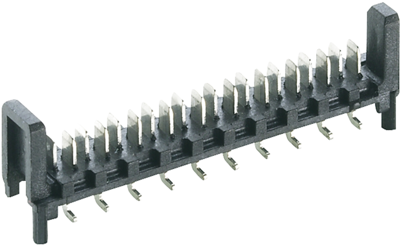

Pin header, 26 pole, pitch 1.27 mm, straight, black, MICS/SMD 26
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 9 Weeks
Minimodul connector, MICA 12 A VP3, Lumberg
Micromodul connector for indirect mating, insulation displacement technology (IDT), with lock, on reel.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | Yes | |
| Version | pin header | |
| Connection | solder pin | |
| Number of rows | 2 | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated voltage | 80 V | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Pin number | 26 pole | |
| Grid | 1.27 mm | |
| Colour | black | |
| Rated current | 1.2 A | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 500 pieces |
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
