MICS/SMD 18 RP | Lumberg

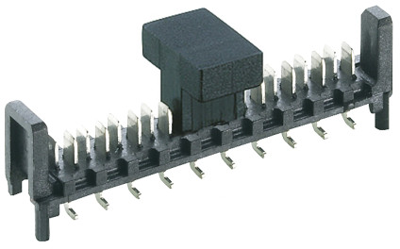

Pin header, 18 pole, pitch 1.27 mm, straight, black, MICS/SMD 18 RP
Unit Price (€ / pc.)
1.4399 € *
Standard delivery time from the manufacturer is: 9 Weeks
Pluggable screw terminal block, KBW 02, Lumberg
Socket board, angular, solder pins single row, with retaining hooks for printed circuit board edge, consecutive placement without loss of pitch.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Connection plating | tin-plated | |
| Colour | black | |
| Rated voltage | 80 V | |
| Connection | solder pin | |
| Pin number | 18 pole | |
| contact surface | tin-plated | |
| Additional parts | equipped | |
| Grid | 1.27 mm | |
| Version | pin header | |
| Number of rows | 1 | |
| Contact type | pin | |
| Rated current | 1.2 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,500 pieces |
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
