MICS-D 18 | Lumberg

Pin header, 18 pole, pitch 2.54 mm, straight, black, MICS-D 18

Order No.: 56F5835
EAN: 4099891000134
MPN:
MICS-D 18
Series: MICS-D

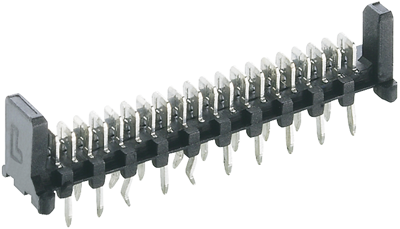

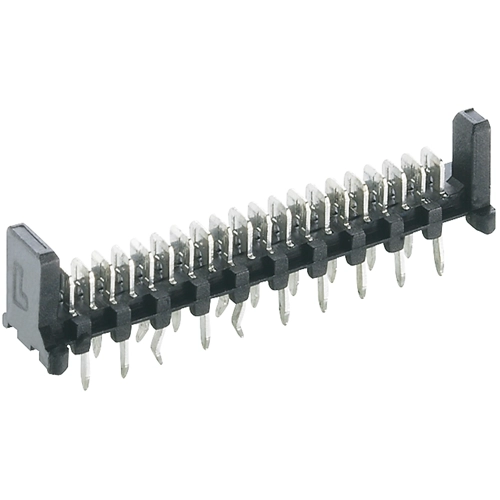

MICS-D 18 Lumberg PCB Connection Systems Image 1

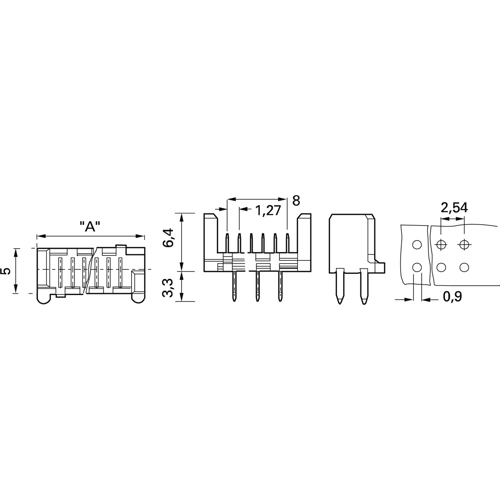

MICS-D 18 Lumberg PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.8211 € *
Available: 817 pcs.
Total Price:
0.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.8211 €

Male connectors without holding claws, type MICS-D.

With solder terminals, parallel double-row; Contact carrier: with holding claws. PCB hole pitch: 2.54 mm. Contact carrier material: PA, glass fiber-reinforced. Male contact: CuZn, tinned on nickel primer. Test voltage: 750 V/60 s. Insulation resistance: min. 1 Gohm.

Technical attributes (type, number of poles, dimension A): MICS - D 18, 18 - pole, A 26.64 mm

Technical specifications
Filter Property Value
Rated voltage 160 V
Rated current 1.2 A
Type of locking Yes
Grid 2.54 mm
Connection plating tin-plated
Number of rows 2
Orientation straight
contact surface tin-plated
Version pin header
Colour black
Connection PCB connection
Pin number 18 pole
Additional parts equipped
Contact type pin
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Original Packaging Carton with 500 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
