MICS-D 12 | Lumberg

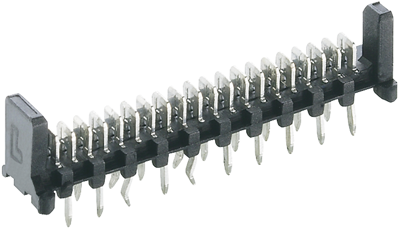

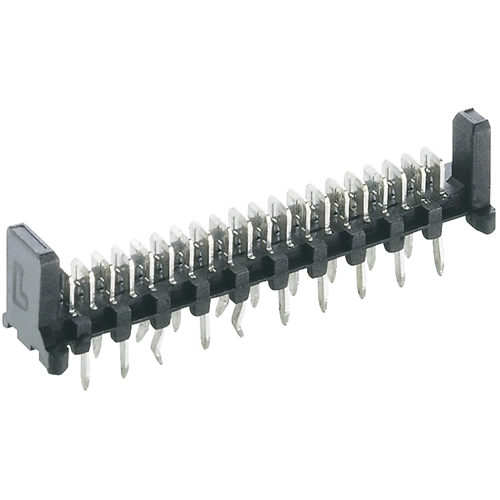

Pin header, 12 pole, pitch 2.54 mm, straight, black, MICS-D 12
Unit Price (€ / pc.)
0.9401 € *
Available: 1 pcs.
Next delivery: 2,000 pcs. on 2025-07-02
Leadtime: 7 Weeks **
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8806 €
50 pcs.
0.7973 €
100 pcs.
0.7021 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connectors without holding claws, type MICS-D.
With solder terminals, parallel double-row; Contact carrier: with holding claws. PCB hole pitch: 2.54 mm. Contact carrier material: PA, glass fiber-reinforced. Male contact: CuZn, tinned on nickel primer. Test voltage: 750 V/60 s. Insulation resistance: min. 1 Gohm.

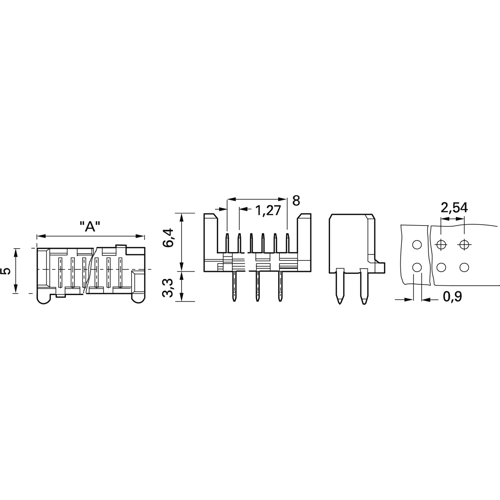

Technical attributes (type, number of poles, dimension A): MICS - D 12, 12 - pole, A 19.02 mm
Technical specifications
| Number of rows | 2 | |
| Rated voltage | 160 V | |
| Contact type | pin | |
| Type of locking | Yes | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Pin number | 12 pole | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Orientation | straight | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 1.2 A |
Download
Logistics
| Country of origin | DE |
| Original Packaging | Carton with 500 pieces |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
