MICA 26 A VP3 | Lumberg

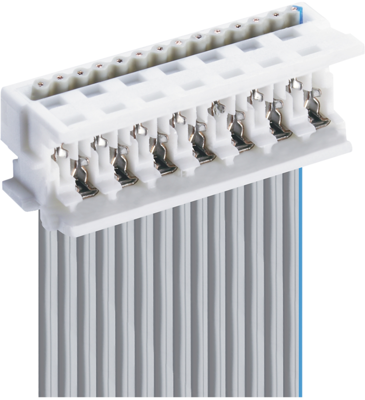

Socket header, 26 pole, pitch 1.27 mm, straight, white, MICA 26 A VP3
Unit Price (€ / pc.)
1.3209 € *
Standard delivery time from the manufacturer is: 9 Weeks
Minimodul connector, 3850 09 10 03, Lumberg
Multimodul pin header, upright, with locking latch, with retaining hooks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Grid | 1.27 mm | |
| Orientation | straight | |
| Connection | IDC connection | |
| Contact type | socket | |
| Rated current | 1.2 A | |
| Additional parts | equipped | |
| Version | socket header | |
| Pin number | 26 pole | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Number of rows | 2 | |
| Colour | white | |
| Rated voltage | 32 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Original Packaging | Reel with 4,000 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
