MICA 18 | Lumberg

Socket header, 18 pole, pitch 2.54 mm, angled, white, MICA 18

Order No.: 56F5815
EAN: 4099889999990
MPN:
MICA 18
Series: MICA

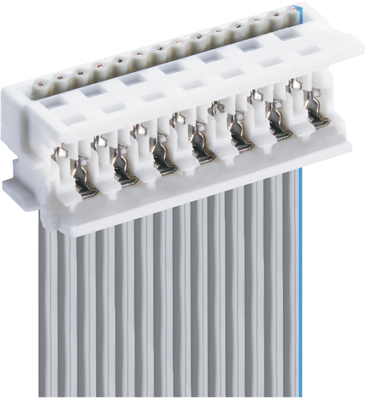

MICA 18 Lumberg PCB Connection Systems Image 1
MICA 18 Lumberg PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Available: 345 pcs.
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
10 pcs.
1.5827 €
50 pcs.
1.4518 €
100 pcs.
1.3090 €
*incl. VAT plus shipping costs
Subject to prior sale

Micro-module connectors, type Lumberg MICA../MICS.

For PCB mounting, space-saving; Grid: 1.27 mm. Rated current: 1.2 A. Rated voltage: 32 VAC. Operating temperatures: –40 to +105 °C. Connectible cables: AWG 28 and AWG 26. Certifications: VDE, UL.

Socket strips with latch, type MICA.

With insulation displacement technology. The socket strips can be used with reliable guide and coding when used in combination with male connectors series MICS; Contact carrier material: PBT to UL 94 V-0. Contact spring: CuSn, tinned. Contact resistance: max. 10 mohm. Insulation resistance: min. 10 Gohm.

Technical attributes (type, number of poles, dimension A): MICA 18, 18–pole, A 25.37 mm

Technical specifications
Filter Property Value
Rated voltage 32 V
Rated current 1.2 A
Type of locking Yes
Grid 2.54 mm
Connection plating tin-plated
Number of rows 1
Orientation angled
contact surface tin-plated
Version socket header
Colour white
Connection IDC connection
Pin number 18 pole
Additional parts equipped
Contact type socket
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Original Packaging Carton with 500 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
