MICA 14 | Lumberg

Socket header, 14 pole, pitch 2.54 mm, angled, white, MICA 14

Order No.: 56F5811
EAN: 4099889999952
MPN:
MICA 14
Series: MICA

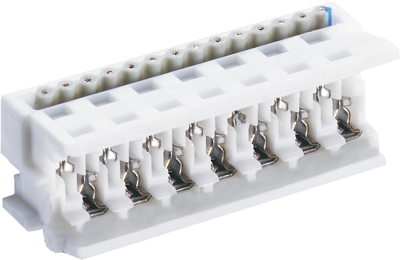

MICA 14 Lumberg PCB Connection Systems Image 1

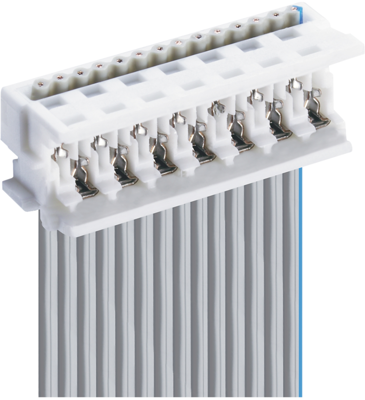

MICA 14 Lumberg PCB Connection Systems Image 2
MICA 14 Lumberg PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.5708 € *
Available: 1,445 pcs.
Total Price:
1.57 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5708 €
10 pcs.
1.4637 €
50 pcs.
1.3447 €
100 pcs.
1.2257 €
500 pcs.
1.0948 €
*incl. VAT plus shipping costs
Subject to prior sale

Micro-module connectors, type Lumberg MICA../MICS.

For PCB mounting, space-saving; Grid: 1.27 mm. Rated current: 1.2 A. Rated voltage: 32 VAC. Operating temperatures: –40 to +105 °C. Connectible cables: AWG 28 and AWG 26. Certifications: VDE, UL.

Socket strips with latch, type MICA.

With insulation displacement technology. The socket strips can be used with reliable guide and coding when used in combination with male connectors series MICS; Contact carrier material: PBT to UL 94 V-0. Contact spring: CuSn, tinned. Contact resistance: max. 10 mohm. Insulation resistance: min. 10 Gohm.

Technical attributes (type, number of poles, dimension A): MICA 14, 14–pole, A 20.29 mm

Technical specifications
Filter Property Value
Rated voltage 32 V
Grid 2.54 mm
Connection IDC connection
Orientation angled
Additional parts equipped
Version socket header
Colour white
Connection plating tin-plated
Pin number 14 pole
Rated current 1.2 A
Contact type socket
contact surface tin-plated
Number of rows 1
Type of locking Yes
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Original Packaging Carton with 500 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
