3850 08 30 04 | Lumberg

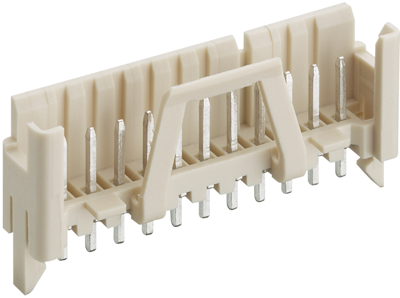

Pin header, 8 pole, pitch 2.5 mm, straight, natural, 3850 08 30 04
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: On Request
Pluggable screw terminal block, ME 020-50804, Lumberg
Pin header, without sidewalls, upright version, consecutive placement without loss of pitch
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | natural | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 3 A | |
| Grid | 2.5 mm | |
| Pin number | 8 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder pin | |
| Contact type | pin | |
| Rated voltage | 160 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
