3114 15 | Lumberg

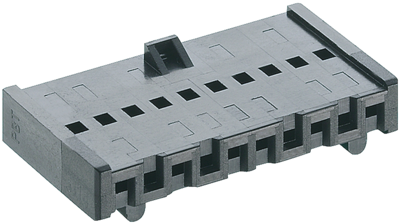

Socket housing, 15 pole, pitch 2.5 mm, straight, black, 3114 15
Order No.: 56F4868
EAN: 4099889999341
MPN:
3114 15
19278
This item is no longer available.
As an alternative, we recommend the following item:
Socket housing, 15 pole, pitch 2.5 mm, straight, black, 3114 15 VP15
Order No.: 41P1782
Manufacturer: Lumberg
per pc. 0.7021 € *
Minimodul housing, 3114 15, LUMBERG
Empty Minimodul housing for reception of crimp contacts, for indirect mating.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Contact type | socket | |
| Pin number | 15 pole | |
| Grid | 2.5 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated voltage | 125 V | |
| Rated current | 5 A | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Original Packaging | Carton with 250 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
