2,5 MSF/O 20 | Lumberg

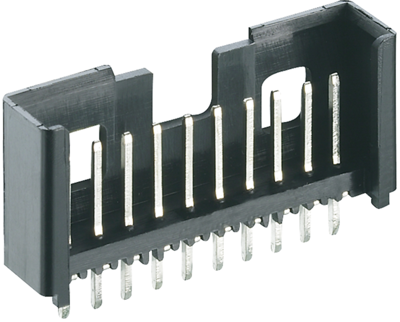

Pin header, 20 pole, pitch 2.5 mm, straight, black, 2,5 MSF/O 20
Unit Price (€ / pc.)
0.8092 € *
Standard delivery time from the manufacturer is: 9 Weeks

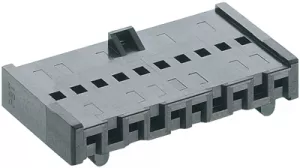

Minimodul connector, MICA 12 C VP3, Lumberg
Micromodul connector for indirect mating, insulation displacement technology (IDT), with lock, on reel.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder pin | |
| Colour | black | |
| Additional parts | equipped | |
| Pin number | 20 pole | |
| Contact type | pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 160 V | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 5 A | |
| Number of rows | 1 | |
| Grid | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 250 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
