2,5 MSF/O 02 | Lumberg

Pin header, 2 pole, pitch 2.5 mm, straight, black, 2,5 MSF/O 02

Order No.: 56F5656
EAN: 4099889999501
MPN:
2,5 MSF/O 02
Series: 2,5 MSF/O

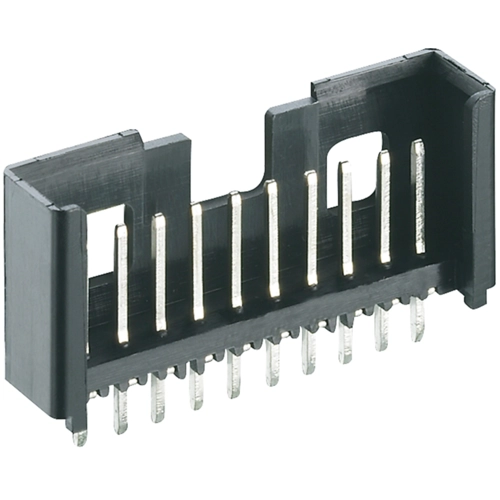

2,5 MSF/O 02 Lumberg PCB Connection Systems Image 1
2,5 MSF/O 02 Lumberg PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Available: 839 pcs.
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
100 pcs.
0.3011 €
200 pcs.
0.2808 €
*incl. VAT plus shipping costs
Subject to prior sale

Mini-module pin headers, type Lumberg 2,5 MSF/O.

2.5 mm grid, single-row. Mating with socket strips type 2.5 MBX.., 3114.. and 2.5 MBPH.., type 2.5 MSF/O 02 (3114) only mates with socket type 3114; Rated voltage (DIN EN 60664/IEC 60664): 40 VAC (degree of soiling 3), 160 VAC (degree of soiling 2). Overvoltage category (DIN EN 60664/IEC 60664): II (1.5 kV). Rated current: 5.0 A. Contact carrier material: PA 6.6, glass fiber-reinforced, UL 94 V-0. Male contact: CuZn, tinned on nickel primer. Operating temperatures: –40 to +120 °C.

Technical attributes (type, number of poles, dimension A/B/C/D): 2.5 MSF/O 02, 2-pole, A 9.7/B 7.7/C 5.5/D 2.5 mm

Technical specifications
Filter Property Value
Colour black
Orientation straight
Rated current 5 A
Connection PCB connection
Grid 2.5 mm
Additional parts equipped
Type of locking Yes
Pin number 2 pole
Rated voltage 160 V
Number of rows 1
Version pin header
Contact type pin
contact surface tin-plated
Logistics
Property Value
Customs tariff number 85366990
Original Packaging Carton with 250 pieces
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
