2,5 MSF 12 | Lumberg

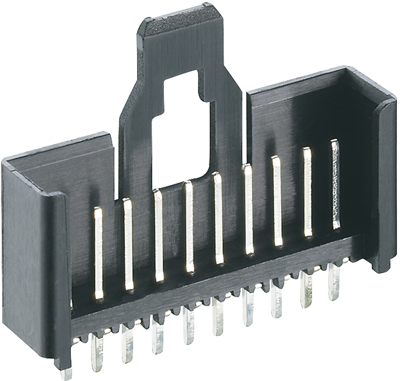

Pin header, 12 pole, pitch 2.5 mm, straight, black, 2,5 MSF 12
Unit Price (€ / pc.)
0.6545 € *
Available: 0 pcs.
Next delivery: 1,989 pcs. on 2025-05-28
Leadtime: 7 Weeks **
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6545 €
100 pcs.
0.5950 €
200 pcs.
0.5355 €
*incl. VAT plus shipping costs
**Subject to prior sale
Mini-module pin headers with lock strap, type Lumberg Typ 2,5 MSF../2,5 MSFQ.
2.5 mm grid, single-row or staggered double-row. Mating with socket strips type 2.5 MBX.. and 3114.., type 2.5 MSF 02 (3114) only mates with socket type 3114; Rated voltage (DIN EN 60664/IEC 60664): 40 VAC (degree of soiling 3), 160 VAC (degree of soiling 2). Overvoltage category (DIN EN 60664/IEC 60664): II (1.5 kV). Rated current: 5.0 A. Contact carrier material: PA 6.6, glass fiber-reinforced, UL 94 V-0. Male contact: CuZn, tinned on nickel primer. Operating temperatures: –40 to +120 °C.
Single-row, type 2,5 MSF.

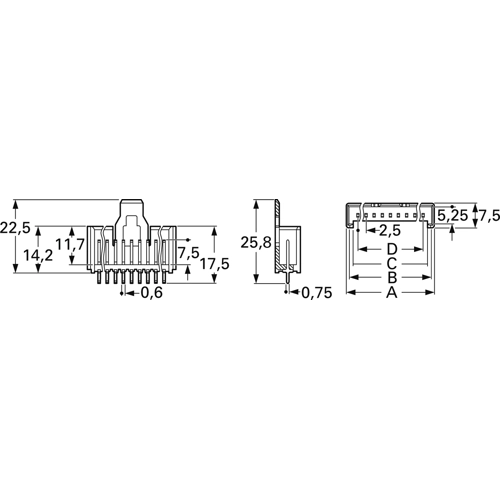

Technical attributes (type, number of poles, dimension A/B/C/D): 2.5 MSF 12, 12-pole, A 34.7/B 32.7/C 30.5/D 27.5 mm
Technical specifications
| Number of rows | 1 | |
| Rated voltage | 160 V | |
| Contact type | pin | |
| Type of locking | Yes | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Pin number | 12 pole | |
| Grid | 2.5 mm | |
| Orientation | straight | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 5 A |
Download
Logistics
| Country of origin | PL |
| Original Packaging | Carton with 250 pieces |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
