SGR 120 | Lumberg

Panel plug, 12 pole, THT, screw locking, straight, SGR 120

Order No.: 70F9650
EAN: 4099889741056
MPN:
SGR 120
Series: SGR

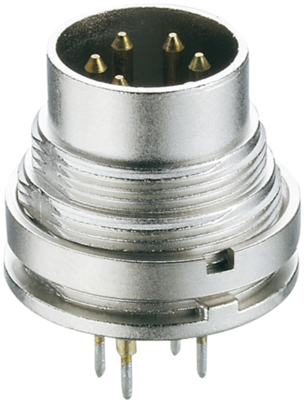

SGR 120 Lumberg Other Circular Connectors Image 1

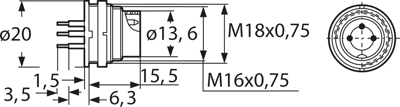

SGR 120 Lumberg Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.2324 € *
Available: 58 pcs.
Total Price:
14.23 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2324 €
10 pcs.
12.5188 €
50 pcs.
11.6620 €
200 pcs.
10.9956 €
400 pcs.
10.5553 €
*incl. VAT plus shipping costs
Subject to prior sale

Chassis plug, SGR 120, LUMBERG

Chassis plug IP40 with threaded joint M16, for printed circuit boards and back side mounting.

Technical specifications
Filter Property Value
Version DIN panel plug
Orientation straight
Shell Material metal
Pin number 12 pole
Additional parts equipped
Contact connection THT
Cable diameter 25.4 mm
contact surface nickel-plated/gold-plated
Assembly rear mounting
Type of locking screw locking
Logistics
Property Value
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
