KV 50/6 | Lumberg
Jack, 5 pole, solder cup, screw locking, straight, KV 50/6
Unit Price (€ / pc.)
7.0091 € *
Available: 306 pcs.
Next delivery: 150 pcs. on 2025-11-12
Total Price:
7.01 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0091 €
10 pcs.
6.1761 €
50 pcs.
5.7596 €
200 pcs.
5.4264 €
400 pcs.
5.2003 €
*incl. VAT plus shipping costs
Subject to prior sale

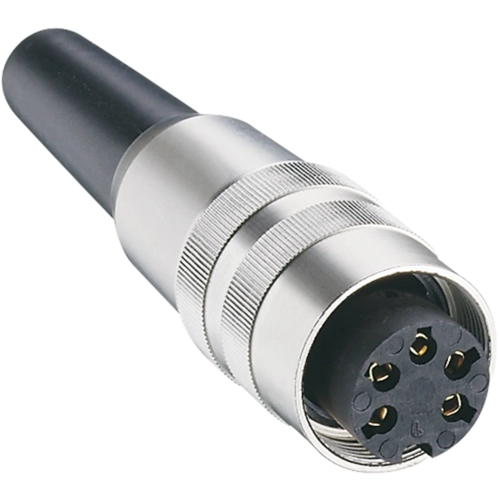

Socket, KV 50/6, LUMBERG
Socket IP40 straight version with threaded joint M16, solder terminals and long bend protection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIN jack | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Contact connection | solder cup | |
| Type of locking | screw locking | |
| Cable diameter | 4 to 6 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated/silver-plated | |
| Shell Material | metal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
