KGV 81 | Lumberg

Panel socket, 8 pole, solder cup, screw locking, straight, KGV 81

Order No.: 70F8946
EAN: 4099889740486
MPN:
KGV 81
Series: KGV
KGV 81 Lumberg Other Circular Connectors Image 1
KGV 81 Lumberg Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.8072 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
5.81 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8072 €
10 pcs.
5.3431 €
50 pcs.
4.8671 €
100 pcs.
4.3792 €
*incl. VAT plus shipping costs
Subject to prior sale

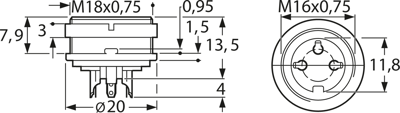

Chassis socket, KGV 81, LUMBERG

Chassis socket IP40, with threaded joint M16 and solder terminals for back side mounting.

Technical specifications
Filter Property Value
Version DIN panel socket
Orientation straight
Shell Material metal
Pin number 8 pole
Cable cross-section 0.75 mm²
Additional parts equipped
Contact connection solder cup
contact surface gold-plated/silver-plated
Assembly rear mounting
Type of locking screw locking
Logistics
Property Value
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
