KGV 70 | Lumberg

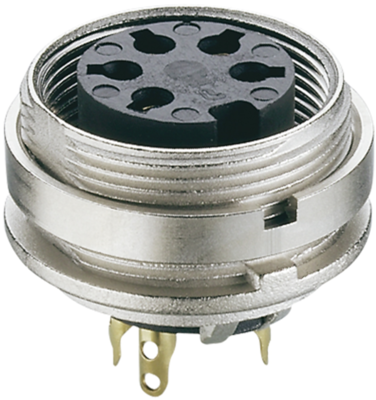

Panel socket, 7 pole, solder cup, screw locking, straight, KGV 70
Unit Price (€ / pc.)
5.4145 € *
Available: 107 pcs.
Total Price:
5.41 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4145 €
10 pcs.
4.7481 €
100 pcs.
4.1650 €
200 pcs.
4.0222 €
*incl. VAT plus shipping costs
Subject to prior sale
Chassis socket, KGV 70, LUMBERG
Chassis socket IP40, with threaded joint M16 and solder terminals for back side mounting.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| Version | DIN panel socket | |
| Assembly | rear mounting | |
| Cable cross-section | 0.75 mm² | |
| Contact connection | solder cup | |
| Additional parts | equipped | |
| contact surface | gold-plated/silver-plated | |
| Shell Material | metal | |
| Pin number | 7 pole | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 50 pieces |
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
