KGV 60 | Lumberg

Panel socket, 6 pole, solder cup, screw locking, straight, KGV 60

Order No.: 70F8938
EAN: 4099889740431
MPN:
KGV 60
Series: KGV
KGV 60 Lumberg Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
4.6410 € *
Available: 242 pcs.
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
10 pcs.
4.1055 €
100 pcs.
3.5819 €
200 pcs.
3.4391 €
*incl. VAT plus shipping costs
Subject to prior sale

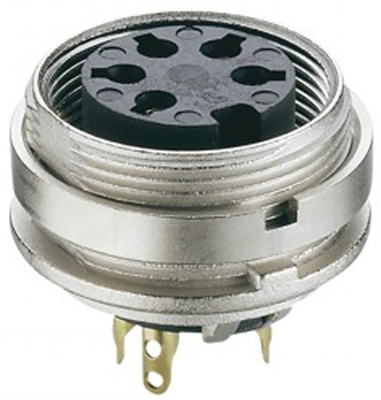

Chassis socket, KGV 60, LUMBERG

Chassis socket IP40, with threaded joint M16 and solder terminals for back side mounting.

Technical specifications
Filter Property Value
Version DIN panel socket
Orientation straight
Shell Material metal
Pin number 6 pole
Cable cross-section 0.75 mm²
Additional parts equipped
Contact connection solder cup
contact surface gold-plated/silver-plated
Assembly rear mounting
Type of locking screw locking
Logistics
Property Value
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Country of origin CZ
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
