036000 08-1 | Lumberg

Jack, 8 pole, solder cup, screw locking, straight, 036000 08-1

Order No.: 41P1187
EAN: 4099889723694
MPN:
036000 08-1
Series: 036000
036000 08-1 Lumberg Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
8.1634 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
8.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.1634 €

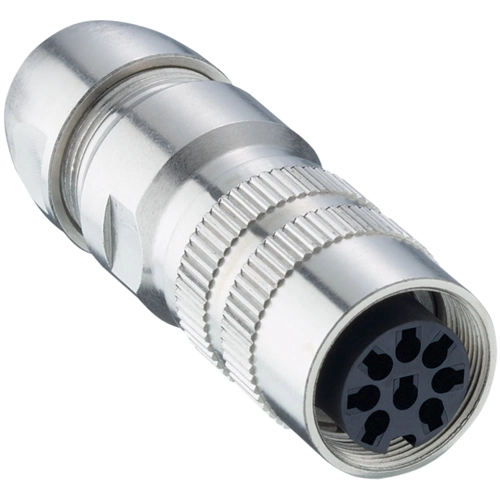

Socket, 036000 08-1, LUMBERG

Socket IP68 with threaded joint M16 and vibration protection, empty housing for reception of crimp contacts and is 360° shielded with optimized assembly.

Technical specifications
Filter Property Value
Pin number 8 pole
Shell Material copper alloy
Cable cross-section 0.75 mm²
Type of locking screw locking
Cable diameter 4 to 8 mm
Orientation straight
Contact connection solder cup
Version jack
Assembly cable assembly
Logistics
Property Value
Country of origin PL
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
