0322 08-1 | Lumberg

Jack, 8 pole, solder cup, screw locking, straight, 0322 08-1

Order No.: 70F4136
EAN: 4099889736328
MPN:
0322 08-1
Series: 0322

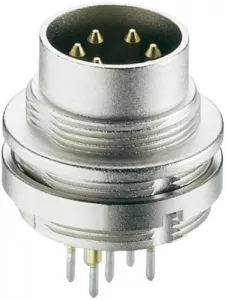

0322 08-1 Lumberg Other Circular Connectors Image 1

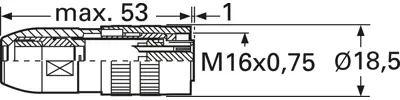

0322 08-1 Lumberg Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.1158 € *
Next delivery: 100 pcs. on 2025-07-02
Total Price:
8.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.1158 €

Socket, 0322 08-1, LUMBERG

Socket IP68, with threaded joint M16 and solder terminals, 360° shielded.

Technical specifications
Filter Property Value
Version DIN jack
Cable cross-section 0.75 mm²
Pin number 8 pole
Orientation straight
Contact connection solder cup
Type of locking screw locking
Cable diameter 4 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated/silver-plated
Shell Material metal
Logistics
Property Value
Country of origin FR
Customs tariff number 85369010
Original Packaging Carton with 50 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
