0318-1 08-1 | Lumberg

Panel plug, 8 pole, solder cup, screw locking, straight, 0318-1 08-1

Order No.: 41P1147
EAN: 4099889723403
MPN:
0318-1 08-1
Series: 0318-1
0318-1 08-1 Lumberg Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
6.9020 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
6.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.9020 €

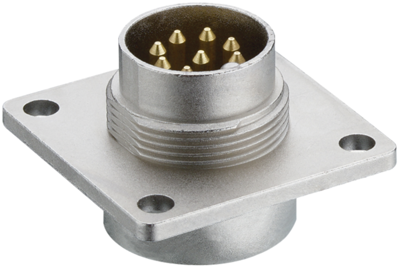

Flange chassis plug, 0318-1 08-1, LUMBERG

Flange chassis plug IP68, with threaded joint M16 and solder terminals for front mounting.

Technical specifications
Filter Property Value
Cable cross-section 0.75 mm²
contact surface gold-plated/silver-plated
Type of locking screw locking
Shell Material metal
Version panel plug
Orientation straight
Assembly front mounting
Pin number 8 pole
Contact connection solder cup
Logistics
Property Value
Country of origin PL
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
