0315 07-1 | Lumberg
Panel plug, 7 pole, solder cup, screw locking, straight, 0315 07-1
Unit Price (€ / pc.)
7.1043 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
7.10 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1043 €
10 pcs.
6.5331 €
50 pcs.
5.9381 €
100 pcs.
5.3550 €
*incl. VAT plus shipping costs
Subject to prior sale

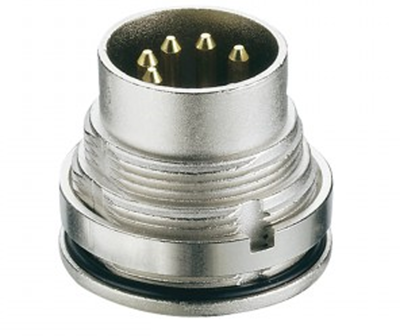

Chassis plug, 0315 07-1, LUMBERG
Chassis plug IP68, with threaded joint M16 and solder terminals for back side mounting.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Pin number | 7 pole | |
| contact surface | gold-plated/silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Shell Material | metal | |
| Contact connection | solder cup | |
| Assembly | rear mounting | |
| Version | DIN panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
