0314 14 | Lumberg

Panel plug, 14 pole, solder cup, screw locking, straight, 0314 14

Order No.: 70F4047
EAN: 4099889735802
MPN:
0314 14
Series: 0314
0314 14 Lumberg Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
11.7691 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,176.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
11.7691 €

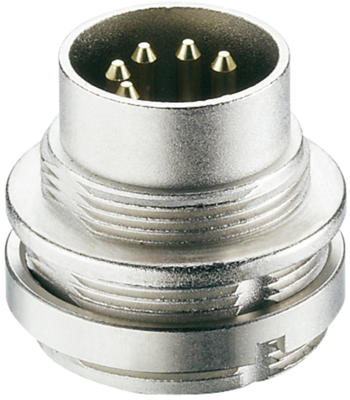

Chassis plug, 0314 14, LUMBERG

Chassis plug IP68, with threaded joint M16 and solder terminals for front mounting.

Technical specifications
Filter Property Value
Pin number 14 pole
Shell Material metal
Cable cross-section 0.75 mm²
Version DIN panel plug
Assembly front mounting
Additional parts equipped
contact surface nickel-plated/gold-plated
Orientation straight
Type of locking screw locking
Contact connection solder cup
Logistics
Property Value
Customs tariff number 85366990
Country of origin CZ
Original Packaging Carton with 50 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
