0308 07 | Lumberg
Panel socket, 7 pole, solder cup, screw locking, straight, 0308 07
Unit Price (€ / pc.)
8.4966 € *
Available: 86 pcs.
Total Price:
8.50 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4966 €
10 pcs.
7.8183 €
50 pcs.
7.1162 €
100 pcs.
6.4022 €
*incl. VAT plus shipping costs
Subject to prior sale

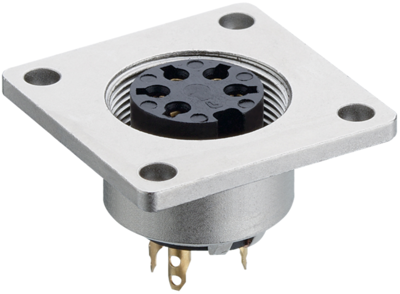

Flange chassis socket, 0308 07, LUMBERG
Flange chassis socket IP68, with threaded joint M16 and solder terminals for front mounting.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 7 pole | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | front mounting | |
| Contact connection | solder cup | |
| contact surface | gold-plated/silver-plated | |
| Version | panel socket | |
| Cable cross-section | 0.75 mm² | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
