0308 06 | Lumberg

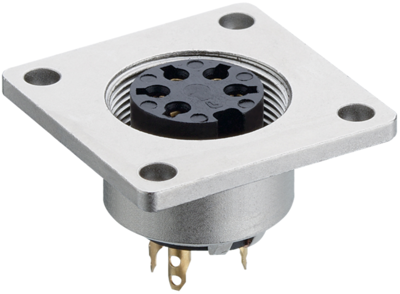

Panel socket, 6 pole, solder cup, screw locking, straight, 0308 06
Unit Price (€ / pc.)
8.0682 € *
Available: 69 pcs.
Total Price:
8.07 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0682 €
10 pcs.
7.4256 €
50 pcs.
6.7592 €
100 pcs.
6.0809 €
*incl. VAT plus shipping costs
Subject to prior sale
Flange chassis socket, 0308 06, LUMBERG
Flange chassis socket IP68, with threaded joint M16 and solder terminals for front mounting.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| contact surface | gold-plated/silver-plated | |
| Shell Material | brass | |
| Orientation | straight | |
| Assembly | front mounting | |
| Type of locking | screw locking | |
| Pin number | 6 pole | |
| Version | panel socket | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Original Packaging | Carton with 50 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
