0306 05 | Lumberg

Panel socket, 5 pole, solder cup, screw locking, straight, 0306 05

Order No.: 70F4077
EAN: 4099889736106
MPN:
0306 05
Series: 0306
0306 05 Lumberg Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
5.0575 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
5.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.0575 €

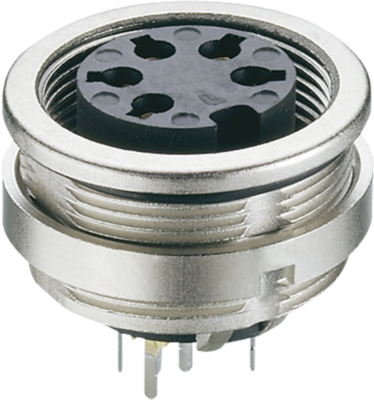

Chassis socket, 0306 05, LUMBERG

Chassis socket IP68, with threaded joint M16 for printed circuit boards and front mounting.

Technical specifications
Filter Property Value
Cable diameter 16 to 17.8 mm
contact surface gold-plated/silver-plated
Type of locking screw locking
Shell Material metal
Version DIN panel socket
Orientation straight
Assembly front mounting
Additional parts equipped
Pin number 5 pole
Contact connection solder cup
Logistics
Property Value
Country of origin CZ
Original Packaging Carton with 50 pieces
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
