0305 08-1 | Lumberg
Panel socket, 8 pole, solder cup, screw locking, straight, 0305 08-1
Unit Price (€ / pc.)
7.8421 € *
Available: 100 pcs.
Leadtime: 9 Weeks **
Total Price:
7.84 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8421 €
10 pcs.
6.8901 €
50 pcs.
6.4260 €
200 pcs.
6.0452 €
400 pcs.
5.8072 €
*incl. VAT plus shipping costs
**Subject to prior sale

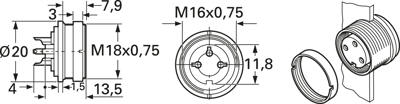

Chassis socket, 0305 08-1, LUMBERG
Chassis socket IP68, with threaded joint M16 and solder terminals for back side mounting.
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated/silver-plated | |
| Assembly | rear mounting | |
| Contact connection | solder cup | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 8 pole | |
| Version | DIN panel socket | |
| Additional parts | equipped | |
| Shell Material | metal | |
| Orientation | straight |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
