0305 05 | Lumberg
Panel socket, 5 pole, solder cup, screw locking, straight, 0305 05
Unit Price (€ / pc.)
6.7711 € *
Available: 58 pcs.
Total Price:
6.77 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7711 €
10 pcs.
6.2356 €
50 pcs.
5.6763 €
100 pcs.
5.1051 €
*incl. VAT plus shipping costs
Subject to prior sale

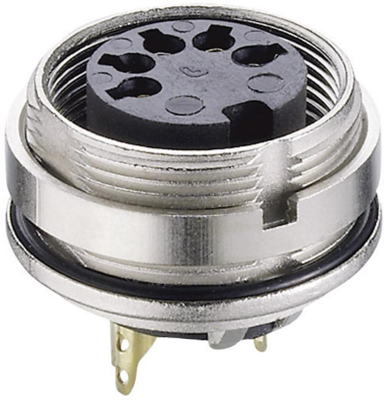

Chassis socket, 0305 05, LUMBERG
Chassis socket IP68, with threaded joint M16 and solder terminals for back side mounting.
Technical specifications
Filter | Property | Value |
---|---|---|
Type of locking | screw locking | |
Contact connection | solder cup | |
Orientation | straight | |
contact surface | gold-plated/silver-plated | |
Version | DIN panel socket | |
Shell Material | metal | |
Pin number | 5 pole | |
Cable cross-section | 0.75 mm² | |
Additional parts | equipped | |
Assembly | rear mounting |
Download
Logistics
Property | Value |
---|---|
Country of origin | CZ |
Customs tariff number | 85366990 |
Original Packaging | Carton with 50 pieces |
Compliance
Property | Value |
---|---|
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
RoHS conform | Yes |
