0132 05 | Lumberg

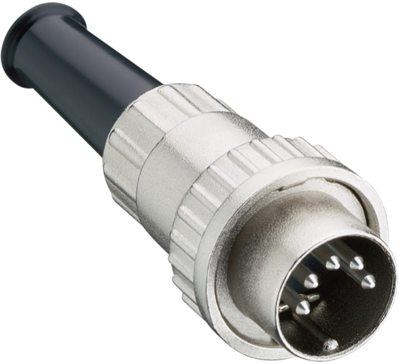

Plug, 5 pole, solder cup, bayonet locking, straight, 0132 05
Unit Price (€ / pc.)
5.7001 € *
Next delivery: 140 pcs. on 2025-10-29
Total Price:
5.70 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7001 €
10 pcs.
5.2360 €
50 pcs.
4.7719 €
100 pcs.
4.2959 €
*incl. VAT plus shipping costs
Subject to prior sale
DIN plug, 0132 05, LUMBERG
DIN plug, straight version, shielded, with bayonet lock, metal housing, bend protection and solder terminals.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.65 mm² | |
| contact surface | silver-plated | |
| Type of locking | bayonet locking | |
| Orientation | straight | |
| Shell Material | metal | |
| Contact connection | solder cup | |
| Pin number | 5 pole | |
| Version | plug | |
| Cable diameter | 7 mm | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Original Packaging | Carton with 50 pieces |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
