NEB 1 R | Lumberg
DC panel socket, pin Ø 1.9 mm, hole Ø 6.6 mm, black, NEB 1 R
Unit Price (€ / pc.)
2.0468 € *
Available: 93 pcs.
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
10 pcs.
1.8921 €
50 pcs.
1.7136 €
100 pcs.
1.5351 €
*incl. VAT plus shipping costs
Subject to prior sale

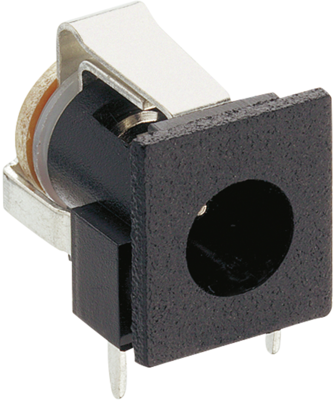

Power supply connector, NEB 1 R, Lumberg
Power supply chassis socket, angular version with flange and break contact, for printed circuit boards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection | solder connection | |
| Rated voltage | 34 V | |
| Pin diameter | 1.9 mm | |
| Latching switching function | No | |
| Assembly | PCB mounting | |
| Product type | panel socket | |
| Hole diameter | 6.6 mm | |
| With bend protection | No | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
