1636 07 | Lumberg

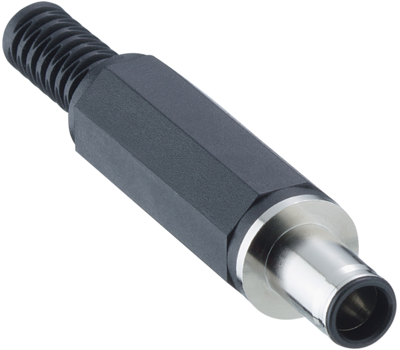

DC plug, inner Ø 5.6 mm, outer Ø 7.9 mm, pin Ø 0.9 mm, black, 1636 07
Unit Price (€ / pc.)
4.1531 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
4.15 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1531 €
10 pcs.
3.8199 €
50 pcs.
3.4748 €
100 pcs.
3.1297 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supply connector, 1636 07, Lumberg
Power supply plug, straight version with solder eyes and bend protection 3 pole.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shaft length | 12.8 mm | |
| Pin diameter | 0.9 mm | |
| Connection | solder connection | |
| Latching switching function | No | |
| Rated voltage | 42 V | |
| With bend protection | Yes | |
| Product type | plug | |
| Assembly | cable assembly | |
| Colour | black | |
| Outer diameter | 7.9 mm | |
| Inner diameter | 5.6 mm | |
| Cable diameter | 6 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
