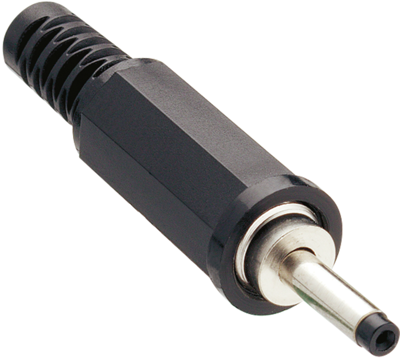

1636 01 | Lumberg

DC plug, inner Ø 0.7 mm, outer Ø 2.35 mm, black, 1636 01

Order No.: 41P1330
EAN: 4099889874822
MPN:
1636 01
1636 01 Lumberg DC Connectors
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:

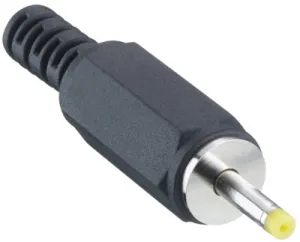

DC plug, inner Ø 0.7 mm, outer Ø 2.35 mm, black, 1636 08
DC plug, inner Ø 0.7 mm, outer Ø 2.35 mm, black, 1636 08
Order No.: 41P1790
Manufacturer: Lumberg
per pc. 2.1658 € *

Power supply connector, 1636 01, Lumberg

Power supply plug, straight version with solder eyes and bend protection.

Technical specifications
Filter Property Value
Cable diameter 4 mm
Connection solder connection
Shaft length 9.5 mm
Colour black
Latching switching function No
Outer diameter 2.35 mm
With bend protection Yes
Rated voltage 3.15 V
Assembly cable assembly
Product type plug
Rated current 2 A
Inner diameter 0.7 mm
Logistics
Property Value
Country of origin JP
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
