1614 05 | Lumberg

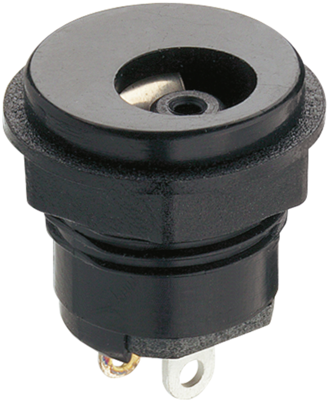

DC panel socket, pin Ø 1.45 mm, hole Ø 7 mm, black, 1614 05
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.8921 € *
Available: 239 pcs.
Total Price:
1.89 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8921 €
10 pcs.
1.7612 €
25 pcs.
1.6422 €
50 pcs.
1.4875 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supply connector, 1614 05, Lumberg
Power supply chassis socket, straight version with break contact and solder eyes, for front side mounting.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | panel socket | |
| Pin diameter | 1.45 mm | |
| Hole diameter | 7 mm | |
| Colour | black | |
| Connection | PCB connection | |
| Assembly | panel mounting | |
| Latching switching function | Yes | |
| With bend protection | No | |
| Rated voltage | 18 V | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
