1613 19 | Lumberg
DC panel socket, pin Ø 1.05 mm, hole Ø 7 mm, black, 1613 19
Order No.: 41P1317
EAN: 4099889874693
MPN:
1613 19
This item is no longer available.
As an alternative, we recommend the following item:
DC panel socket, pin Ø 7 mm, hole Ø 1.05 mm, black, 1613 31
Order No.: 40F1020
Manufacturer: Lumberg
per pc. 1.0353 € *

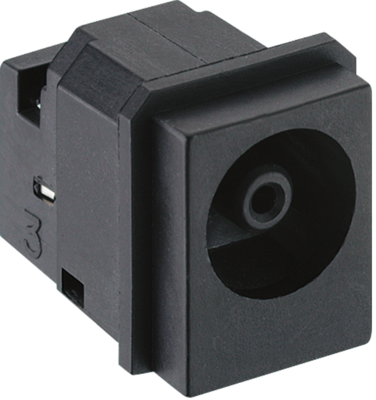

Power supply connector, 1613 19, Lumberg
Power supply chassis socket acc. to JEITA RC-5322 JCBJ11, angular version, with break contact, for printed circuit boards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin diameter | 1.05 mm | |
| Connection | solder connection | |
| Latching switching function | Yes | |
| Rated voltage | 24 V | |
| With bend protection | No | |
| Hole diameter | 7 mm | |
| Product type | panel socket | |
| Assembly | through-hole mounting | |
| Colour | black | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
