934879005 | Lumberg Automation

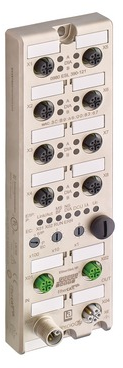

Sensor-actuator distributor, multiprotocol, 8 x M12 (5 pole, 8 input / 8 output), 934879005
Unit Price (€ / pc.)
586.5748 € *
Standard delivery time from the manufacturer is: 18 Weeks
LioN-P device, 0980 ESL 393-121-DCU1, Lumberg Automation
LioN-P, Distributed Control Unit, LDmicro Programmable (Ladder) Multiprotocol module (PROFINET, EtherNet/IP and EtherCAT), industrial metal housing, 60 mm, up to IP69K, 8 digital input and 8 digital output channels (2 A) with galvanic isolation, 8 x M12 A-coded I/O connection, 5-poles, 2 x M12 D-coded bus connection, 4-poles, 2 x M12 L-coded power supply connection, 5-poles.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65/IP67 | |
| Bus Output | M12 (5 pole, A coded) | |
| IO Ports | 8 x M12 (5 pole, 8 input / 8 output) | |
| Signal type | PNP | |
| Bus Input | M12 (5 pole, A coded) | |
| Power Input | M12 | |
| Protocol | multiprotocol |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
