934878005 | Lumberg Automation
Sensor-actuator distributor, PROFINET, 8 x M12 (5 pole, 4 input / 8 IO-Link master), 934878005
Unit Price (€ / pc.)
617.0388 € *
Standard delivery time from the manufacturer is: 2 Weeks

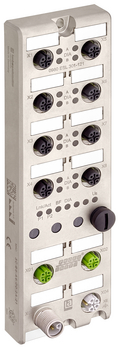

LioN-P device, 0980 ESL 308-121, Lumberg Automation
LioN-P, IO-Link Master, PROFINET, industrial metal housing, 60 mm, up to IP69K, 4 digital input and 4 digital output channels (2 A) with galvanic isolation and 8 IO-Link Master, 8 x M12 A-coded I/O connection, 5-poles, 2 x M12 D-coded bus connection, 4-poles, 2 x M12 L-coded power supply connection, 5-poles, extra dcoupling of Pin 2L+/Uaux with series diode against power feedback from L+ for maximum security.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP65/IP67 | |
| Bus Input | M12 (5 pole, A coded) | |
| Bus Output | M12 (5 pole, A coded) | |
| Power Input | M12 | |
| Signal type | PNP | |
| Protocol | PROFINET | |
| IO Ports | 8 x M12 (5 pole, 4 input / 8 IO-Link master) |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85176200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
