54190 | Lumberg Automation
Sensor-actuator distributor, profibus DP, M12 (socket, 0 input / 16 output), 54190
Unit Price (€ / pc.)
975.4668 € *
Standard delivery time from the manufacturer is: 18 Weeks

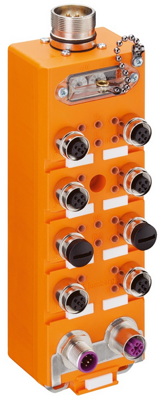

Profibus-DP device, 0970 PSL 124, Lumberg Automation
Profibus-DP device with 16 digital outputs (0.5A) to connect standard actuators, combined M12 socket, rotary switches for addressing, M12 bus connection, M23 systems/actuator supply.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Bus Output | M12 | |
| IO Ports | M12 (socket, 0 input / 16 output) | |
| Power Input | M23 | |
| Protocol | profibus DP |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
