12124 | Lumberg Automation
Sensor-actuator distributor, 4 x M8 (3 pole), 12124

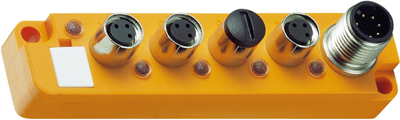

Miniature Sensor/actuator distribution box, type Lumberg SBS 4/LED 3.
With 4 x M8 sockets, 3-pole, status display and M12 connector for the feed cable; Rated voltage: 10 to 30 VDC. Rated current (per socket/total): 2.0/2.0 A. Contact resistance: max. 5.0 mohm. Degree of protection: IP 67 (in locked or screwed state). Ambient temperatures: –15 to +90 °C.
Type: SBS 4/LED 3, miniature sensor/actuator distribution box
Bus Output | M8 (3 pole, A coded) | |
Bus Input | M8 (3 pole, A coded) | |
IO Ports | 4 x M8 (3 pole) | |
Power Input | M12 | |
Degree of protection (IP) | IP67 | |
Signal type | PNP |
Country of origin | DE |
Customs tariff number | 85366990 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
