934980603 | Lumberg Automation

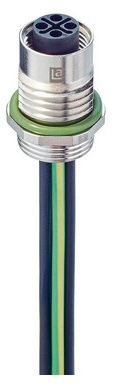

Panel socket, M12, 4 pole, coupling nut, straight, 934980603
Unit Price (€ / pc.)
16.065 € *
Standard delivery time from the manufacturer is: 8 Weeks
Power connector, 934980603, Lumberg Automation
M12 Power receptacle connector: female, rear mount, 4-pin (3+PE), shielded, silver housing, 600 V AC/DC, 16 A.
Features
- Contact material: CuNi
- S-coded
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | S | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Product type | panel socket | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | gold-plated | |
| Type of locking | coupling nut | |
| Assembly | rear mounting | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
