934980503 | Lumberg Automation
Panel socket, M12, 4 pole, coupling nut, straight, 934980503
Unit Price (€ / pc.)
16.4101 € *
Standard delivery time from the manufacturer is: 8 Weeks

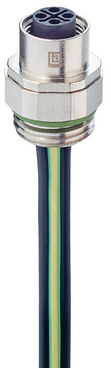

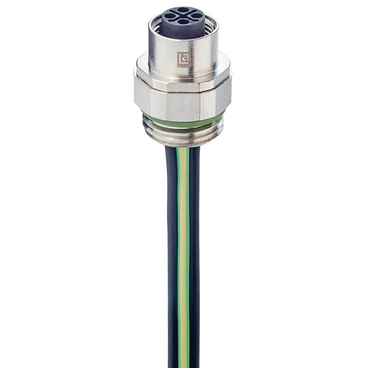

Power connector, 934980503, Lumberg Automation
M12 Power receptacle connector: female, front mount (positionable), 4-pin (3+PE), shielded, silver housing, 600 V AC/DC, 16 A.
Features
- Contact material: CuNi
- S-coded
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Coding | S | |
| Type of locking | coupling nut | |
| Thread size | M12 | |
| Degree of protection (IP) | IP67/IP69K | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Assembly | front mounting | |
| Product type | panel socket |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
