934937008 | Lumberg Automation

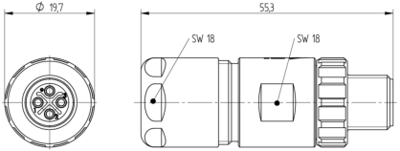

Plug, M12, 4 pole, screw connection, coupling screw, straight, 934937008
Unit Price (€ / pc.)
29.0003 € *
Standard delivery time from the manufacturer is: 14 Weeks
Power connector, 934937008, Lumberg Automation
M12 Power field attachable connector: male, straight, 4-pin (3+PE), shielded, silver housing, screw type, 600 V AC/DC.
Features
- Contact material: CuZn
- S-coded
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | S | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Pin number | 4 pole | |
| Product type | plug | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | gold-plated | |
| Type of locking | coupling screw | |
| Assembly | cable assembly | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
