934935002 | Lumberg Automation
Jack, M12, 5 pole, crimp connection, coupling nut, straight, 934935002
Unit Price (€ / pc.)
38.199 € *
Standard delivery time from the manufacturer is: 16 Weeks

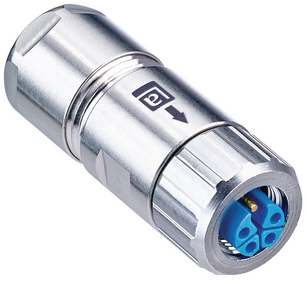

Power connector, 934935002, Lumberg Automation
M12 Power field attachable connector: female, straight, 5-pin (4+PE), K-coded, shielded, silver housing, crimp type, 600 V AC/DC.
Features
- Contact material: CuZn
- Housing material: PA
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | K | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| Pin number | 5 pole | |
| Product type | jack | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | gold-plated | |
| Type of locking | coupling nut | |
| Assembly | cable assembly | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
