934742001 | Lumberg Automation

Plug, M8, 8 pole, PCB connection, screw locking, straight, 934742001

Order No.: 50F4117
EAN: 4099889697575
MPN:
934742001
RSMHL 8/S 5,5
Series: RSMHL
934742001 Lumberg Automation Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
9.7223 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
9.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.7223 €

Sensor-actuator connector, 934742001, Lumberg Automation

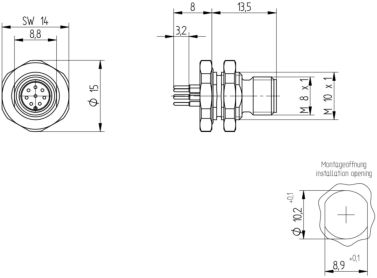

M8 Standard Sensor/actuator receptacle connector: male, rear mount, M8 Screw - mating side, print contacts - connecting side, 8-pin, unshielded, metallic grey housing, 30 V AC/DC, 1.5 A.

Features

  • Contact material: CuZn, pre-nickeled and 0.8 microns gold-plated
  • Pollution degree: 3
  • Degree of protection: IP67
Technical specifications
Pin number 8 pole
Type of locking screw locking
Contact connection PCB connection
Product type plug
Coding A
Assembly rear mounting
Orientation straight
Degree of protection (IP) IP67
Thread size M8
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin CZ
Compliance
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
