934637726 | Lumberg Automation

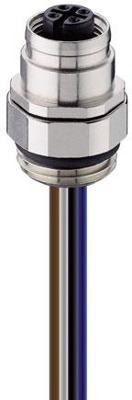

Panel socket, M12, 5 pole, crimp connection, screw locking, straight, 934637726
Unit Price (€ / pc.)
9.7342 € *
Standard delivery time from the manufacturer is: 22 Weeks
Sensor-actuator connector, 934637726, Lumberg Automation
M12 Standard Sensor/actuator receptacle connector: female, front mount positionable, M12 - mating side, stranded wires - connecting side, 5-pin, unshielded, metallic grey housing, 50 V AC/60 V DC, 4 A.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Coding | A | |
| Type of locking | screw locking | |
| Thread size | M12 | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Assembly | front mounting | |
| Contact connection | crimp connection | |
| Product type | panel socket |
Download
Logistics
| Customs tariff number | 85444290 |
| Country of origin | CZ |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
