934529004 | Lumberg Automation

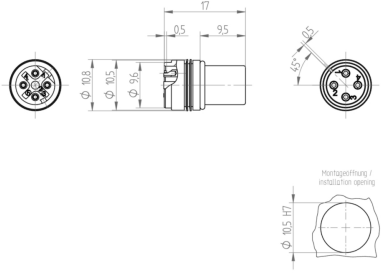

Panel socket, M12, 4 pole, solder connection, straight, 934529004
Unit Price (€ / pc.)
3.3796 € *
Standard delivery time from the manufacturer is: 22 Weeks
Sensor-actuator connector, 934529004, Lumberg Automation
Fast Ethernet Cat5e Data receptacle connector: female, M12 - mating side, solder contacts - connecting side, 4-pin, unshielded, blue body, 50 V AC/60 V DC, 4 A.
Features
- Stranded wires
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | straight | |
| Product type | panel socket | |
| Coding | D | |
| Assembly | cable assembly | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
