934451521 | Lumberg Automation

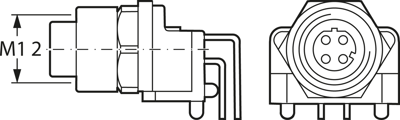

Panel socket, M12, 4 pole, solder pins, screw locking, angled, 934451521
Unit Price (€ / pc.)
10.2935 € *
Available: 30 pcs.
Total Price:
10.29 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2935 €
10 pcs.
9.4724 €
50 pcs.
8.6156 €
100 pcs.
7.7588 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 934451521, Lumberg Automation
Fast Ethernet Cat5e Data receptacle connector: female, rear mount, M12 - mating side, angled print contacts - connecting side, 4-pin, unshielded, metallic grey housing, 50 V AC/60 V DC, 4 A.
Features
- Contact material: CuZn
- Overvoltage category: III
- Pollution degree: 3
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M12 | |
| Orientation | angled | |
| Contact connection | solder pins | |
| Additional parts | equipped | |
| Pin number | 4 pole | |
| Assembly | PCB mounting | |
| Coding | D | |
| Degree of protection (IP) | IP65/IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
