934267206 | Lumberg Automation
Plug, M12, 5 pole, solder connection, straight, 934267206
Unit Price (€ / pc.)
1.7731 € *
Standard delivery time from the manufacturer is: 22 Weeks

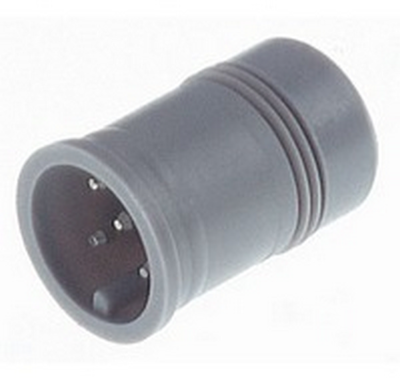

Sensor-actuator connector, 934267206, Lumberg Automation
M12 Insert Sensor/actuator receptacle connector: male, insert with ribs, M12 - mating side, solder contacts - connecting side, 5-pin, unshielded, grey body, 50 V AC/60 V DC, 4 A.
Features
- Contact material: CuZn
- A-coded
- Pollution degree: 3
- Overvoltage category: III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | tin-plated | |
| Assembly | cable assembly | |
| Coding | A | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Product type | plug | |
| Pin number | 5 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
